Datasheet
24.07.2025Part n° | 101683 |
Product name | ekey FS WM RFID Beckhoff |
Product name 2 | RS-485 800 fingers Baud19200 |
EAN code | 9120068250344 |
Customs tariff number | 8471 9000 |
Origin country | AT |
Weight: | 0.22 kg |

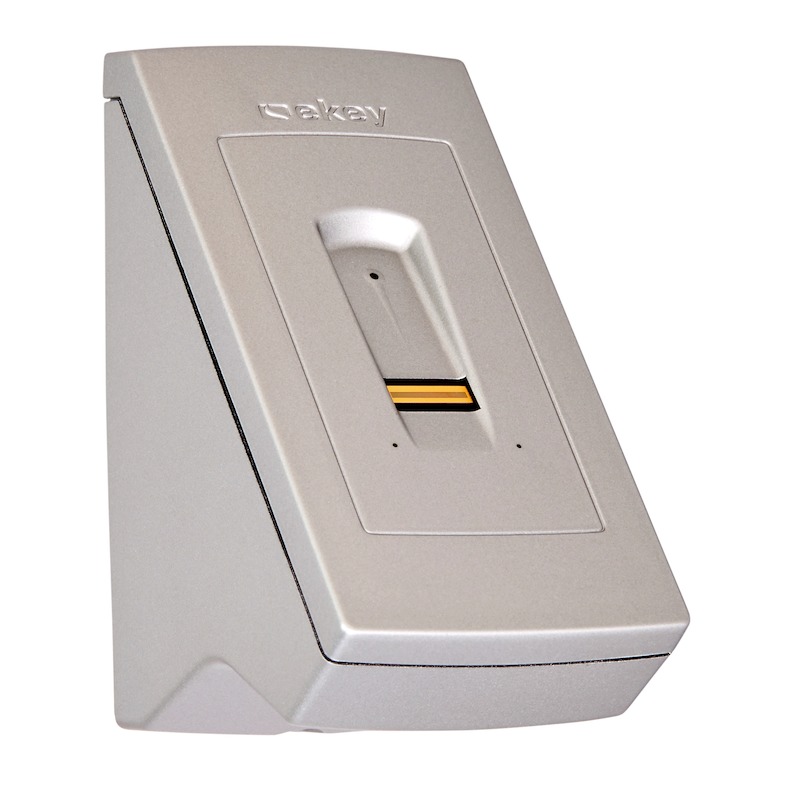

The Beckhoff finger scanner wall-mounted with an RFID function for wall mounting is a biometric sensor terminal for the registration of fingerprints by means of an RF line sensor from Authentec. The finger scanner doubles up as an RFID terminal that can be used with RFID cards. The finger scanner has to be operated in Beckhoff control systems. This finger scanner is used to idenjpgy authorized users and is intended for use in both domestic and business applications. The finger scanner is designed for fixed wall mounting on immobile components, such as masonry, and for use in unprotected outdoor areas.
Operational data | |
---|---|
Supply typ: | DC |
Maximum supply voltage: | 24 V |
Minimum supply voltage: | 8 V |
Maximum current consumption: | 470 mA |
Minimum current consumption: | 100 mA |
Current consumption rating: | 130 mA |
Maximum power: | 4 W |
Minimum power: | 0.8 W |
Power rating: | 1 W |
Minimum operating temperature: | -25 °C |
Maximum operating temperature: | 70 °C |
Maximum humidity: | 90 %rel |
IP code: | IP44 |
Suitable for unprotected outdoor area: | yes |
Suitable for protected outdoor area: | yes |
Fingeranzahl: | 800 |
FAR: | 1:10 000 000 |
FRR: | 1:100 |
Recognition period: | 1 s |
Kartenanzahl: | 800 |
Tolerance rated voltage: | 10 % |
Mechanical data | |
---|---|
Model: | Wall-mounted |
Mounting type: | Wall-mounted |
Minimum mounting height: | 135 cm |
Width: | 45 mm |
Length/height: | 81.6 mm |
Depth: | 60.3 mm |
Material: | ABS/PC plastic |
Surface: | Varnished |
Color: | Steel-gray |
UV-resistant: | yes |
Conformity | |
---|---|
Standards: | EN61000-6-2 | EN61000-6-3 |
Directives: | CE2014/30/EU | RoHs2011/65/EU |
Sensor | |
---|---|
Sensortype: | Finger line sensor |
Sensor technology: | RF |
Resolution: | 500 DPI |
Speed: | 4 cm/s |
RFID | |
---|---|
RFID carrier: | 13,56MHz |
Typical RFID range: | 20 mm |
RFID standards: | ISO14443A | ISO14443B | ISO15693 |
Communication RS-485 | |
---|---|
Number of RS-485 interfaces: | 1 |
RS-485 baud rate: | 19,2KBit/s |
RS-485 network: | Single master |
RS-485 cable length: | 500 m |
RS-485 cable type: | Half-duplex |
RS-485 protocol: | ekey module |
