Part n° 101475
Product name ekey CTL 48/8 0.8 + 10 m CP/o
Product name 2Cable transfer housing in door leaf
EAN code 9120022228266
Customs tariff number 8473 3080
Origin countryDE
Weight: 1.1 kg
Application area
Sales restriction

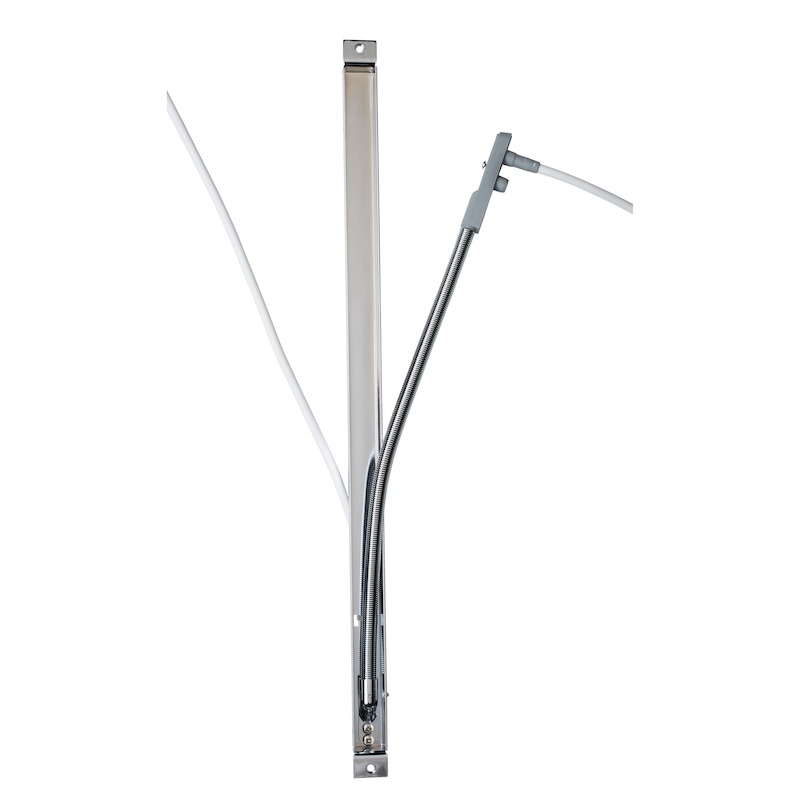

The ekey cable transfer door leaf 48 cm 8-pin 0.8 + 10 m CP35/open is a cable transfer with housing, a cable that has 8 cores that are each 0.34 mm² in diameter, a CP35 pin on the door leaf side, and an open end on the frame side. This cable transfer is used to connect the ekey control panel externally and enables a door opening of up to approx. 180°. The length of the cable is 0.8 m on the door leaf side and 10 m on the frame side. This ekey cable transfer is intended for use in both domestic and business applications. The ekey cable transfer 48/8 0.8 + 10 m CP/o is designed for fixed mounting in door leaves and for use in protected interior areas. The housing is installed in the door leaf. The dimensions of the housing are: H x W x D: 478 x 24 x 17.5 mm. This ekey cable transfer is an optional accessory part.

Technical data

Operational data
Supply typ:
Maximum supply voltage:
Minimum supply voltage:
Supply voltage rating:
Maximum current consumption:
Minimum current consumption:
Current consumption rating:
Maximum power:
Minimum power:
Power rating:
Minimum operating temperature:-40 °C
Maximum operating temperature:80 °C
Maximum humidity:90 %rel
IP code:IP67
Suitable for unprotected outdoor area:
Suitable for protected outdoor area:
Number of buttons:
Type of buttons:
Log memory:
Recognition period:
Number of codes:
Codelänge max:
Lifetime in number of operations:
Lifetime in MTBF:
Line frequency:
Battery life in number of access instances:
Battery life when idle:
Tolerance rated voltage:
Maximum number of registration units:
Installed real-time clock:
Type of operation:
Minimum pin code length:
FSuitable for RFID function:
Number of logs:
Mechanical data
Mounting type:In-wall mounting
Minimum mounting height:
Width:24 mm
Length/height:511 mm
Depth:17.5 mm
Cylinder standard:
Zylinderlänge Innenseite:
Zylinderlänge Außenseite:
Shock resistance:
Vibration resistance:
Similar RAL^
Mechanical data
Profile dimensions width:
Profile dimensions depth:
Profile diameter:
Profil wall thickness
ASpacing betwenn fastening brackets:
Additional information:
For application software:
Operating systems:
Software version:
Battery or Akku
Charging current:
Charging time:
Charging cycles:
Battery type:
Battery maintenance:
Electronic relays
Switching function of electronic relay:
Number of electronic relays:
Switching voltage electronic relay:
Switching current of electronic relay (resistive load):
Leckstrom des elektronischen Relais:
Contact form of electronic relay:
Maximum impulse switching time of electronic relay:
Minimale Impulsschaltzeit des elektronischen Relais:
Short-circuit protection of electronic relay:
Overcurrent protection of electronic relay:
Type of switching voltage for electronic relay:
Mechanical relays
Switching voltage of mechanical relay:
Switching current of mechanical relay:
Switching current of mechanical relay:
Contact form of mechanical relay:
Mechanical lifetime in switching cyclesh:
Electrical lifetime in switching cycles:
Maximum impulse switching time of mechanical relay:
Minimum impulse switching time of mechanical relay:
Short-circuit protection of mechanical relay:
Overcurrent protection of mechanical relay:
Spark quenching:
Switching function of mechanical relay:
Type of switching voltage for mechanical relay:
Voltage output
Output voltage type:
Output voltage:
Output voltage tolerance:
Output current
Output power
Output voltage ripple:
Minimum load:
Protection class:
KShort-circuit protection at output:
Overcurrent monitoring at output:
Polarity reversal protection at output:
Voltage output efficiency:
Digital inputs
Number of digital inputs:
Input voltage enabled:
Input voltage disabled:
Maximum input voltage:
Maximum input current:
Activation type:
Sensor technology:
Communication USB
Number of USB interfaces:
USB standard:
USB connector:
Communication Bluetooth
Bluetooth standard:
Bluetooth class:
Maximum Bluetooth range:
Typical Bluetooth Range:
Communication Ethernet
Number of Ethernet interfaces:
Ethernet interface protoco:
Ethernet bandwidth:
Ethernet connector:
Communication RF
Radio carrier:
Typical radio range:
Radio encryption:
Radio connecto:
RFID carrier:
Typical RFID range:
RFID standards:
RFID encryption:
Communication RS-232
Number of RS-232 interfaces:
baud rate:
RS-232 cable type:
RS-232 cable length:
RS-232 protocol:
RS-232 encryption::
Communication RS-485
Number of RS-485 interfaces:
RS-485 baud rate:
RS-485 network:
RS-485 cable length:
RS-485 cable type:
RS-485 protocol:
RS-485 encryption:
Communication Wiegand
Number of Wiegand interfaces:
Wiegand communication type:
Wiegand cable length:
Wiegand cable type::
Wiegand protocol::
Configurable Wiegand protocol:
Communication WLAN
WLAN standard:
Maximum WLAN range:
Typical WLAN range:
WLAN bandwidth:
Data rate:
Maximum length of connection lines
Maximum length of output cables:
Maximum length of input cables:
Maximum length of conductors:
Cable type::
Cable type::
Cable length:
Number of cores:
Core cross section:
Core resistance:
Sheath material:
Sheath diameter:
Cable shield:
Isolation voltage:
Cable transfer
With housing::On the leaf side
Maximum opening angle:180 °
Cable length on the leaf side:0.8 m
Pin on the leaf side:CP35 08 male
Cable length on the frame side:10 m
Pin on the frame side:Stripped
Cable shielding:
Number of data cable cores:6
Core cross section of data cables:0.34 qmm
Number of conductor cores:2
Core cross section of conductors::0.34 qmm
Data cable rated voltage:48 V
Data cable rated current:2500 mA
