Datasheet
29.07.2025Part n° | 101649 |

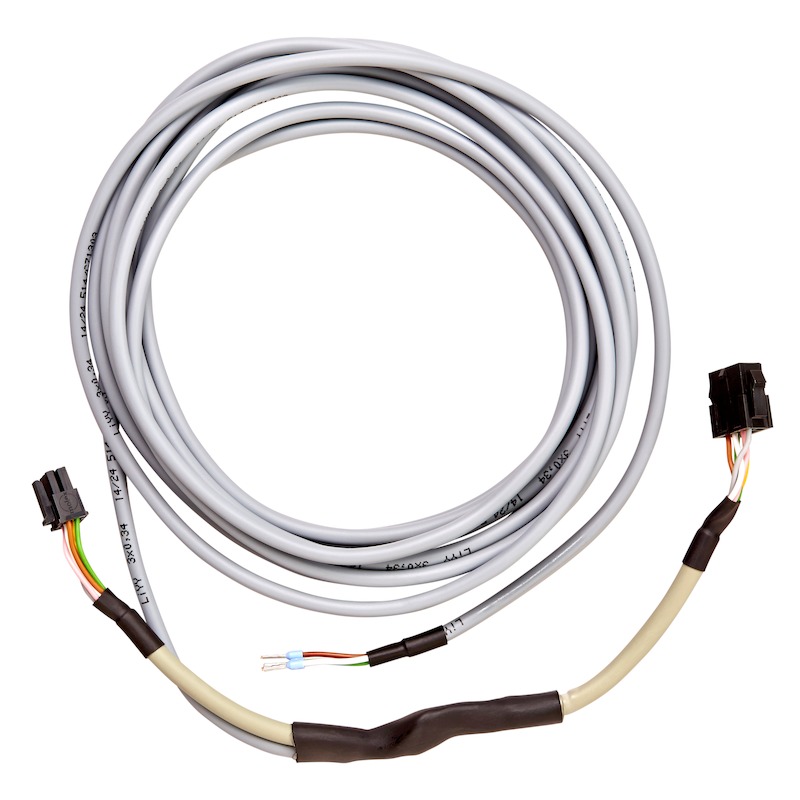

Product name | ekey adapter micro KFV_A ROTO A FUHR CTS |
Product name 2 | for KFV_A, Roto Eneo A, FUHR , cable transfer side |
EAN code | 9120022229713 |
Customs tariff number | 8544 4290 |
Origin country | HU |
Weight: | 0.14 kg |
The ekey adapter cable for the ekey control panel micro cable transfer side and the KFV Genius A, FUHR multitronic/autotronic, and Roto Eneo A motorized locks is a cable that connects the ekey control panel micro to these locks as well as the ekey cable transfer. This ekey adapter cable is intended for use in both domestic and business applications. This ekey adapter cable is designed for fixed mounting in doors and for use in protected interior areas. The ekey adapter cable for the ekey control panel micro cable transfer side and the KFV Genius A, FUHR multitronic/autotronic, and Roto Eneo A motorized locks is an optional component that can only be used in conjunction with the ekey control panel micro and these motorized locks.
Operational data | |
---|---|
Minimum operating temperature: | -40 °C |
Maximum operating temperature: | 80 °C |
Maximum humidity: | 90 %rel |
Cable | |
---|---|
Cable type:: | Adapter |
Cable type:: | LiYY |
Cable length: | 4.1 m |
Number of cores: | 6 |
Core cross section: | 0.34 qmm |
Core resistance: | 0.06 Ohm/m |
Stranding: | None |
Sheath material: | PVC |
Sheath diameter: | 5.7 mm |
Isolation voltage: | 1000 V |
