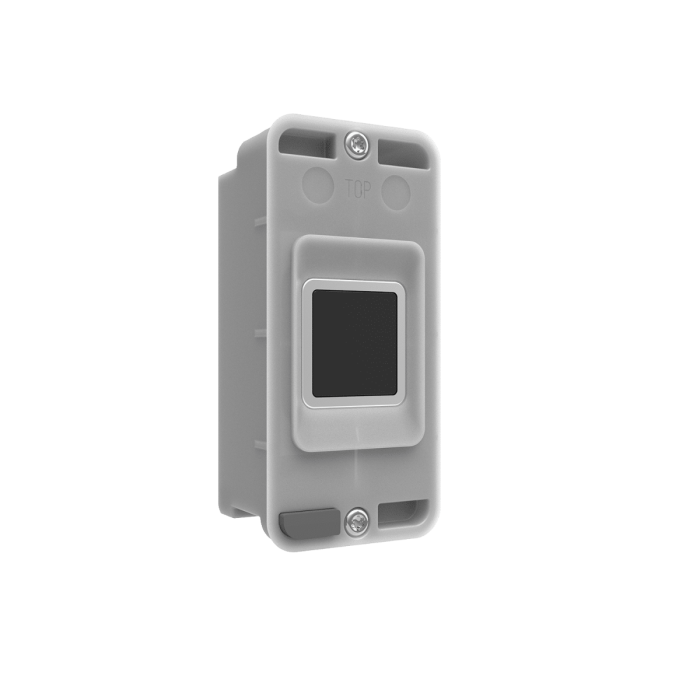

ekey dLine fingerprint scanner for door leaf or door handle
The ekey dLine fingerprint scanner is a biometric access solution that grants keyless access to buildings using intuitive touch operation. The door now also features smart functions, so that the intelligent use of a building begins at the front door. The system is administered using the free ekey bionyx app.
The fingerprint scanner in detail:
- Smallest possible model: the focus is on the door design
- Area sensor technology
- Different switching functions with different fingers
- Recommended mounting height: 155 cm
- Suitable for outdoor and indoor use
- Temperature resistance from -25 °C to +70 °C
- Status display via 4-segment light ring
- 20 users or 80 fingers (can be expanded to 100 users)
- Read protection: stored information can not be read or further processed
The ekey dLine fingerprint scanner requires the following additional elements:
- ekey dLine design element
- ekey dLine fingerprint scanner control unit cable
- ekey dLine control unit + mounting plate
- ekey dLine control unit motorized lock cable (optional)
- ekey dLine cable transfer (optional)
- ekey dLine control unit cable transfer cable (optional)
- ekey power supply (optional)
Further details:
- Patented ekey recognition algorithm
- Self-learning algorithm: Detects growth of children’s fingers.
- 1,000x more secure than a 4-digit code
- Anti-spoof coating: No fingerprint is left on the device.
- Latent finger recognition
- Fingerprints are not stored; instead, the algorithm converts them into a binary code. This means that it is also impossible to reconstruct the original fingerprint.
Advantages of the ekey dLine:
- Plug & play system: the ekey dLine is ready to plug in
- Protection from external tampering
- No opening signal or data loss in the event of a power failure
- User administration via ekey bionyx app
- Firmware updates via ekey bionyx app
- Remote opening via ekey bionyx app
- Remote administration via ekey bionyx app
- Remote diagnostics via ekey bionyx app
- Push notifications when the door is opened via the ekey bionyx app
- Set time slots via ekey bionyx app (person X: access Wednesday, 9:00 a.m. to 1:00 p.m.)
- Logging of accesses via ekey bionyx app
- Data backup of the device configuration via ekey bionyx app
- Also open the door with a smartphone using the ekey bionyx app near the door
- Connection to Amazon Alexa virtual assistant and prepared for smart home connectivity
- Can be expanded with new features and devices in the future
| Datasheet link | Zum Datenblatt |
|---|---|
| Type of assembly | In the door or door handle |
| IP Code | IP56 (mit Dekorelement) |
| EAN code | 9120068256131 |
| Surface | Kunststoff |
| Policies | CE2014/30/EU|RoHs2011/65/EU|WEEE2012/19/EU |
| Material | Kunststoff ASA-PC |
| Power type | DC |
| Maximum supply voltage | 30 V |
| Minimum supply voltage | 10 V |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | -25 °C |
| Width | 22,3 mm |
| Length/Height | 46,8 mm |
| FRR | 1:100 |
| FAR | 1:10 000 000 |
| Sales restriction | - |
Local Mode
Without Internet/WLAN
✓ Open the door with a fingerprint scanner or a smartphone near the door
✓ Intuitive administration via smartphone (e.g. users, devices)
✓ Different functions with different fingers (device-specific)
✓ Up to 20 users (up to 4 fingers per user)
✓ Firmware updates
Plus Mode
With smart functions
✓All basic functions from the Local mode
✓ It is still possible to open the door with a fingerprint scanner as before without Internet/WLAN
✓ Remote opening via smartphone
✓ Push notifications when the door is opened
✓ Time slots (e.g. person X: Access Wednesday, 9 a.m. to 1 p.m.)
✓ Administer up to 20 fingerprint scanners centrally in the app
✓ Store fingers once and synchronize to other devices
✓ Remote administration of authorizations
✓ Access log over 30 days (activate/deactivate and delete)
✓ Amazon Alexa connection
✓ Smart home connectivity (HTTP(S) requests, APPMODULE, REST API)
✓ Data backup of the device configuration
✓ Remote support
Extensions in Plus mode
(subject to a charge)
+ Extendable up to 100 users
