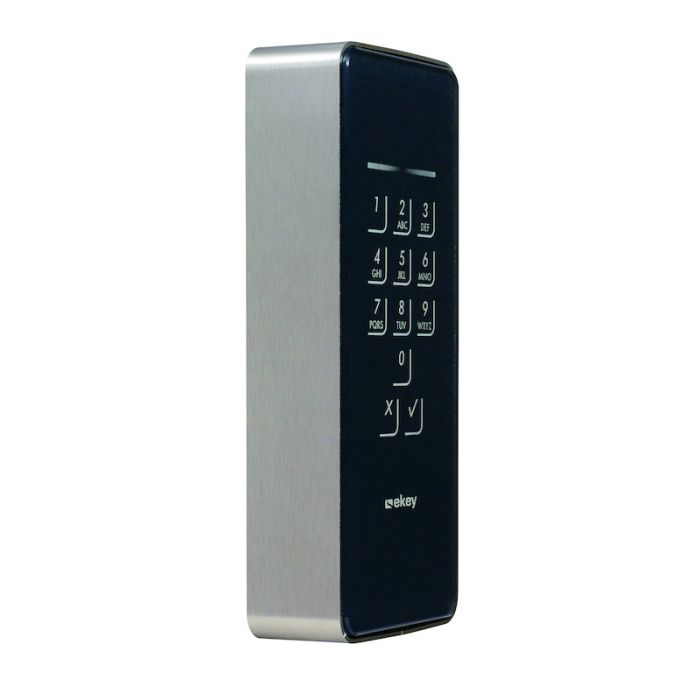

keypad integra
The ekey keypad integra particularly impresses with its ease of use and high-quality workmanship.
Here are some details of the code pad:
- Mounting frame
- Suitable for outdoor and indoor use
- Temperature resistance from -25°C to +70°C
- Up to 99 different 4–8 digit codes can be administered
- No loss of codes due to power failure
- Input method: capacitive touchpad
- Convenient and simple input
The ekey code pad keypad integra incl. glass mounting frame in anthracite is suitable for mounting both indoors and outdoors. The capacitive display provides the highest level of comfort when inputting your personal access code. In order to ensure easier use for every age group, special acoustic and optical aids provide help when inputting codes. Up to 99 different 4–8 digit codes can be programmed and administered simultaneously. This tamper-protected code pad ensures perfect functioning even after a power failure, guaranteeing the highest level of security for your own home.
You will need a compatible control panel as well as a suitable power supply for operation.
Dimensions of glass mounting frame:
- WxHxD: 53.5x127x24 mm
| Type of assembly | Wall Mounted |
|---|---|
| Scope of delivery | 101809,101714 |
| IP Code | IP44 |
| EAN code | 9120068254427 |
| Surface | Gebürstet|Geschliffen |
| Production component | KEYPAD |
| Policies | CE2014/30/EU|RoHs2011/65/EU |
| Material | Edelstahl V2A|Glas |
| Power type | DC |
| Maximum supply voltage | 24 V |
| Minimum supply voltage | 8 V |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | -25 °C |
| Width | 53,5 mm |
| Length/Height | 127 mm |
| Color | Anthracite |
| Color xLine Set | White |
