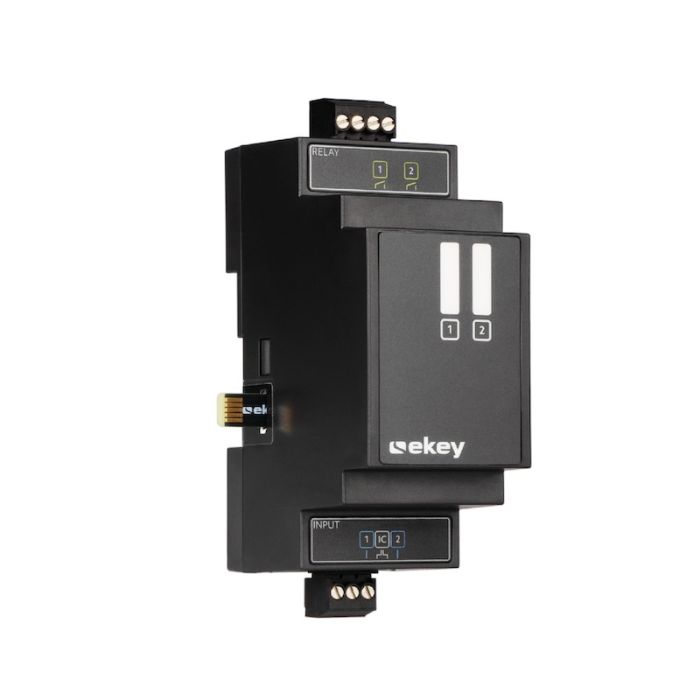

ekey control unit extension module DRM 2 relays/inputs
The ekey controller extension module REG gives you even more options in conjunction with your fingerprint access solution. By adding 2 relays and 2 inputs, you get the perfect solution to additionally control blinds, lights, heating, garage or the alarm system with just a finger.
The extension in detail:
- Additional 2 relays and 2 inputs
- Simple plug-in connection without additional wiring
- DIN rail mounting
Notes: A controller can be combined with a maximum of two extension modules. If you require more than 4 additional relays, we also offer extensions with an additional 8 relays on request.
| Type of assembly | DIN rail |
|---|---|
| IP Code | IP30 |
| EAN code | 9120068257848 |
| Surface | Plastic |
| Policies | CE2014/30/EU, RoHs2011/65/EU, WEEE2012/19/EU, RED2014/53/EU, UKCA |
| Material | Plastic ABS |
| Power type | DC |
| Sales restriction | Worldwide, except USA/Canada |
Local Mode
Without Internet/WLAN
✓ Open the door with a fingerprint scanner or a smartphone near the door
✓ Intuitive administration via smartphone (e.g. users, devices)
✓ Different functions with different fingers (device-specific)
✓ Up to 20 users (up to 4 fingers per user)
✓ Firmware updates
Plus Mode
With smart functions
✓All basic functions from the Local mode
✓ It is still possible to open the door with a fingerprint scanner as before without Internet/WLAN
✓ Remote opening via smartphone
✓ Push notifications when the door is opened
✓ Time slots (e.g. person X: Access Wednesday, 9 a.m. to 1 p.m.)
✓ Administer up to 20 fingerprint scanners centrally in the app
✓ Store fingers once and synchronize to other devices
✓ Remote administration of authorizations
✓ Access log over 7 days (activate/deactivate and delete)
✓ Amazon Alexa connection
✓ Smart home connectivity (HTTP(S) requests, APPMODULE, REST API)
✓ Data backup of the device configuration
✓ Remote support
Erweiterungen im Plus Mode
(subject ot a charge)
+ Extendable to up to 100 users
