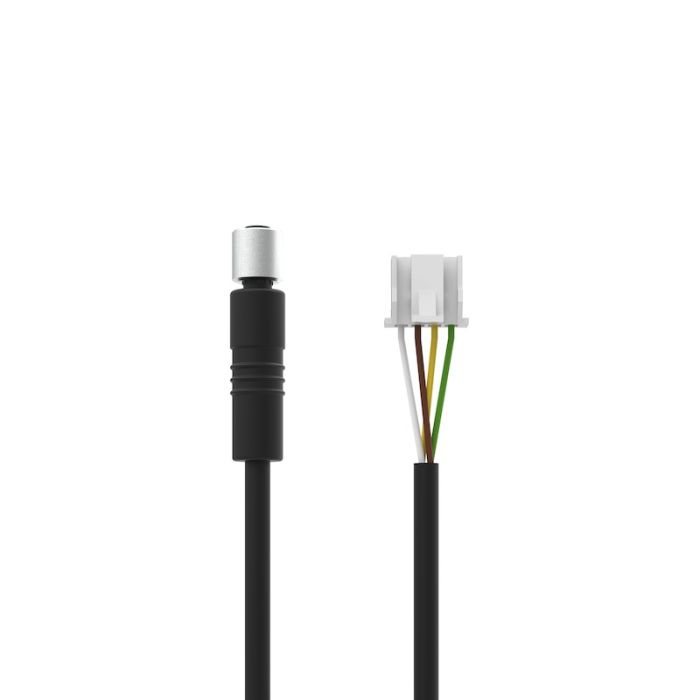

ekey dLine fingerprint scanner control unit cable, CU-side
This separable variant of the ekey dLine fingerprint scanner control unit cable is available to make it easier to mount the door handle. The cable connects the ekey dLine fingerprint scanner with the control unit and can be separated via the M5 jack. The cable halves are available in different lengths and together must not exceed a maximum cable length of 10 m.
The connection cable in detail:
- Optional accessory part for ekey dLine fingerprint scanner and control unit
- The control unit-side (CU) cable has a plug for the ekey dLine control unit and an M5 jack.
- Cable for data and power supply
Important: Requires an additional fingerprint scanner-side (FS) cable with plug for the ekey dLine fingerprint scanner and an M5 plug.
Local Mode
Without Internet/WLAN
✓ Open the door with a fingerprint scanner or a smartphone near the door
✓ Intuitive administration via smartphone (e.g. users, devices)
✓ Different functions with different fingers (device-specific)
✓ Up to 20 users (up to 4 fingers per user)
✓ Firmware updates
Plus Mode
With smart functions
✓All basic functions from the Local mode
✓ It is still possible to open the door with a fingerprint scanner as before without Internet/WLAN
✓ Remote opening via smartphone
✓ Push notifications when the door is opened
✓ Time slots (e.g. person X: Access Wednesday, 9 a.m. to 1 p.m.)
✓ Administer up to 20 fingerprint scanners centrally in the app
✓ Store fingers once and synchronize to other devices
✓ Remote administration of authorizations
✓ Access log over 30 days (activate/deactivate and delete)
✓ Amazon Alexa connection
✓ Smart home connectivity (HTTP(S) requests, APPMODULE, REST API)
✓ Data backup of the device configuration
✓ Remote support
Extensions in Plus mode
(subject to a charge)
+ Extendable up to 100 users
