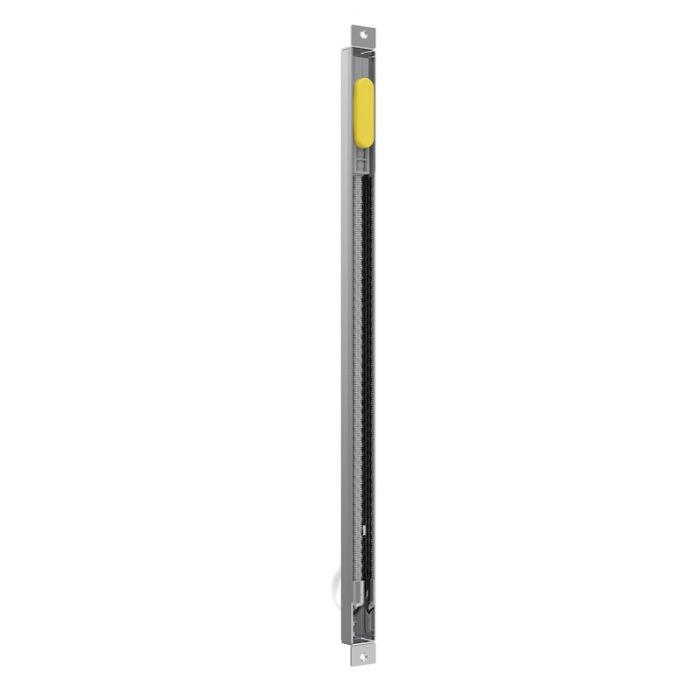

ekey dLine cable transfer
The control unit is supplied with power and data via the cable transfer. The cable transfer is an optional accessory part.
The cable transfer in detail:
- Mounting type: built-in fitting
- 511 x 24 x 17.5 mm (HxWxD)
| Datasheet link | Zum Datenblatt |
|---|---|
| IP Code | IP67 |
| EAN code | 9120068256346 |
| Surface | Chrom |
| Material | Stahl |
| Maximum operating temperature | 80 °C |
| Minimum operating temperature | -40 °C |
| Width | 24 mm |
| Length/Height | 511 mm |
| Cable length | 2,5 m |
Local Mode
Without Internet/WLAN
✓ Open the door with a fingerprint scanner or a smartphone near the door
✓ Intuitive administration via smartphone (e.g. users, devices)
✓ Different functions with different fingers (device-specific)
✓ Up to 20 users (up to 4 fingers per user)
✓ Firmware updates
Plus Mode
With smart functions
✓All basic functions from the Local mode
✓ It is still possible to open the door with a fingerprint scanner as before without Internet/WLAN
✓ Remote opening via smartphone
✓ Push notifications when the door is opened
✓ Time slots (e.g. person X: Access Wednesday, 9 a.m. to 1 p.m.)
✓ Administer up to 20 fingerprint scanners centrally in the app
✓ Store fingers once and synchronize to other devices
✓ Remote administration of authorizations
✓ Access log over 30 days (activate/deactivate and delete)
✓ Amazon Alexa connection
✓ Smart home connectivity (HTTP(S) requests, APPMODULE, REST API)
✓ Data backup of the device configuration
✓ Remote support
Extensions in Plus mode
(subject to a charge)
+ Extendable up to 100 users
