ekey dLine door handle 4-sided straight 40x20x1,200 mm

B2B login required
In stock
SKU
201511
Zahlungsmittel

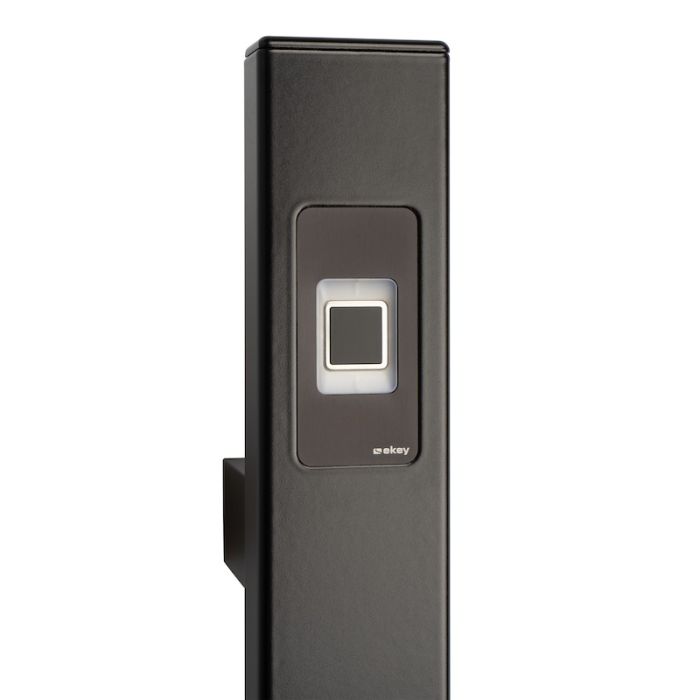

The ekey dLine door handle made of stainless steel has the ekey dLine fingerprint scanner already integrated and can be used on all standard aluminum, plastic, or timber doors. The ekey dLine fingerprint scanner is a biometric access solution that grants keyless access to buildings using intuitive touch operation. The door now also features smart functions, so that the intelligent use of a building begins at the front door. The system is administered using the free ekey bionyx app.

Door handle:

  • Stainless steel (V4A)
  • Brushed surface
  • Dimensions 40 x 20 x 1,200 mm
  • Mounting set for fastening on aluminum, plastic, or timber doors
  • Separable ekey dLine fingerprint scanner control unit cable

Fingerprint scanner:

  • Area sensor technology
  • Different switching functions with different fingers
  • 20 users or 80 fingers (can be expanded to 100 users)
  • Status display via 4-segment light ring
  • Read protection: stored information can not be read or further processed
  • Recommended mounting height: 155 cm
  • Suitable for outdoor and indoor use
  • Temperature resistance from -25 °C to +70 °C



Scope of delivery:

  • ekey dLine door handle (1,200 mm length)
  • 201001 ekey dLine fingerprint scanner
  • 201101 ekey dLine design element door handle stainless steel gray
  • 201322 ekey dLine fingerprint scanner control unit cable FS-side 1.2 m
  • 201326 ekey dLine fingerprint scanner control unit cable CU-side 3.5 m

Required and optional accessory parts:

  • ekey dLine control unit
  • ekey dLine control unit mounting plate
  • ekey dLine control unit motorized lock cable (optional)
  • ekey dLine cable transfer (optional)
  • ekey dLine control unit cable transfer cable (optional)
  • ekey power supply (optional)

The advantages of the ekey dLine system:

  • Plug & play system: The ekey dLine is ready to plug in
  • User administration via ekey bionyx app
  • Firmware updates via ekey bionyx app
  • Remote opening via ekey bionyx app
  • Remote administration via ekey bionyx app
  • Remote diagnostics via ekey bionyx app
  • Push notifications when the door is opened via the ekey bionyx app
  • Set time slots via ekey bionyx app (person X: access Wednesday, 9:00 a.m. to 1:00 p.m.)
  • Logging of accesses via the ekey bionyx app
  • Data backup of the device configuration via ekey bionyx app
  • Also open the door with a smartphone using the ekey bionyx app near the door
  • Connection to Amazon Alexa virtual assistant and prepared for smart home connectivity
  • Protection from external tampering
  • No opening signal or loss of data in the event of a power failure
  • Can be expanded with new features and devices in the future
Technical details
Datasheet link Zum Datenblatt
EAN code 9120068259040
Sales restriction -

Local Mode

Without Internet/WLAN



Open the door with a fingerprint scanner or a smartphone near the door
Intuitive administration via smartphone (e.g. users, devices)
Different functions with different fingers (device-specific)
Up to 20 users (up to 4 fingers per user)
Firmware updates



Plus Mode

With smart functions



All basic functions from the Local mode
✓ It is still possible to open the door with a fingerprint scanner as before without Internet/WLAN
Remote opening via smartphone
Push notifications when the door is opened
Time slots (e.g. person X: Access Wednesday, 9 a.m. to 1 p.m.)
✓ Administer up to 20 fingerprint scanners centrally in the app
Store fingers once and synchronize to other devices
Remote administration of authorizations
Access log over 30 days (activate/deactivate and delete)
Amazon Alexa connection
Smart home connectivity (HTTP(S) requests, APPMODULE, REST API)
Data backup of the device configuration
Remote support



Extensions in Plus mode

(subject to a charge)



+ Extendable up to 100 users
