ekey xLine fingerprint scanner for common switch ranges
Individual flush-mounting installation for indoor and outdoor use
Consistent design through the integration of the fingerprint scanner into switch ranges
Switch ranges are essential components in the electrical installation of buildings. They are functional elements in interior design that are available in standardized designs and colors. In addition to the classic installation of switches, sockets or dimmers, the ekey xLine fingerprint scanner can also be integrated into various common switch ranges.
The advantages of integration into switch ranges
- Aesthetic overall appearance
- Additional installation flexibility
- Simple installation with innovative locking mechanism
- Individual installation in various switch ranges
Switch range for Gira TX_44
The Gira TX_44 switch range is a product line from the renowned German manufacturer Gira, specially designed for use in outdoor areas and damp rooms. With a robust frame and hard-wearing materials, it offers not only functional but also aesthetically pleasing solutions. The Gira TX_44 switch range is theft-protected, impact-resistant, break-proof and microbiologically safe.
Integration of the ekey xLine fingerprint scanner

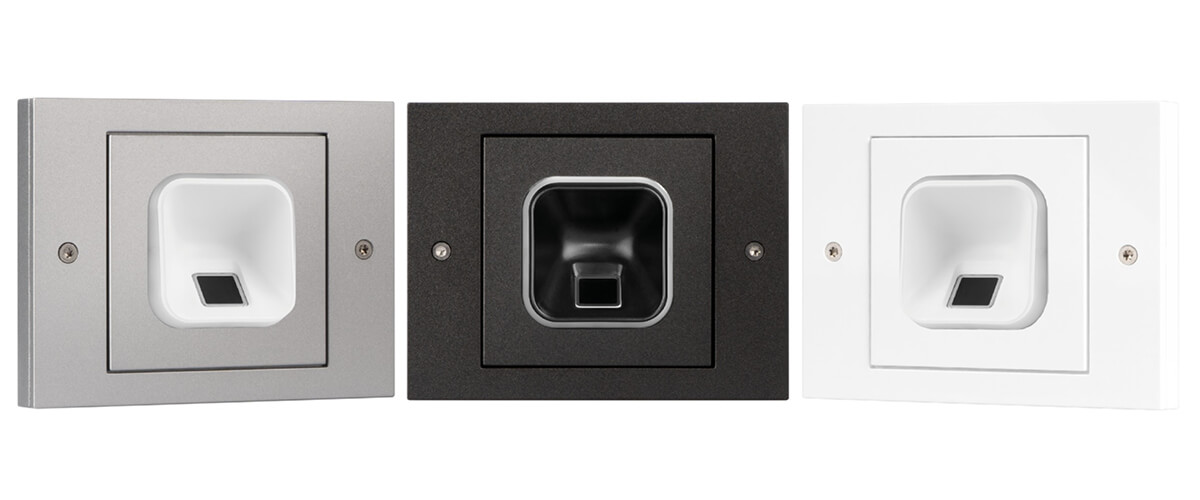

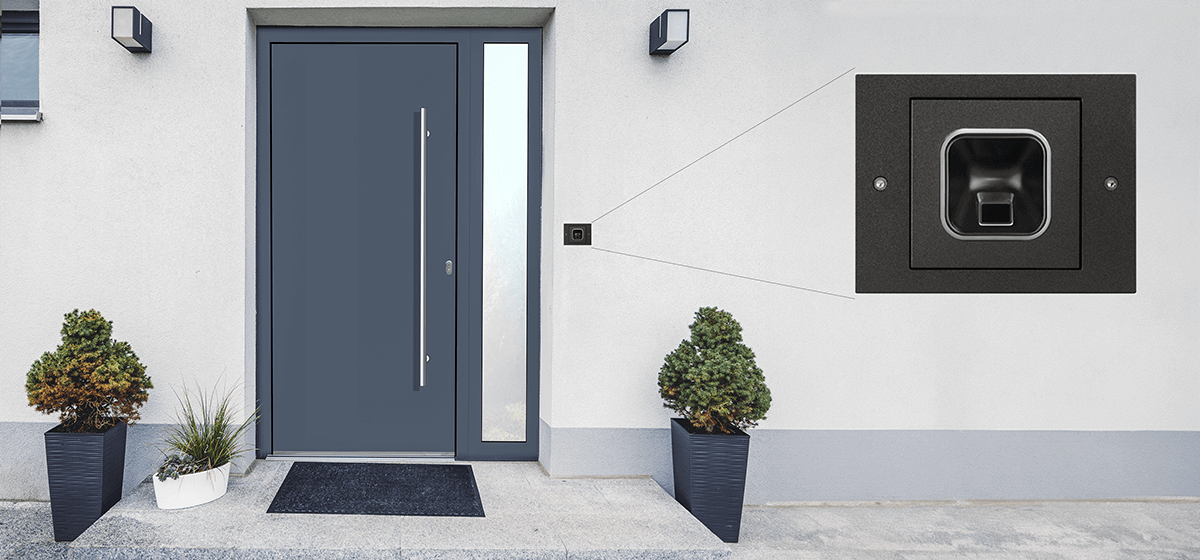

With the specially made Gira TX_44 frame for the ekey xLine, the fingerprint scanner can be integrated into the switch range. The individual parts are perfectly matched and available in aluminum gray, anthracite and pure white. The access solution thus blends in perfectly with the switch range and the surroundings. The frame is made of plastic and is UV-resistant.
Installation in a few simple steps
The rear Gira xLine frame TX_44 is screwed to the wall above the switch back box. The ekey xLine fingerprint scanner is then inserted with the frame adapter. In the final step, the front Gira xLine frame TX_44 is attached to the two fixing points using screws.
The following products are required:
- ekey products:
- ekey xLine fingerprint scanner set for flush-mounting installation without frame
- Gira xLine frame TX_44 for ekey xLine fingerprint scanner (frame adapter already included)
- Not available from ekey:
- Corresponding switch back box
Frame adapter for JUNG LS 990 and JUNG LS ZERO
The JUNG LS 990 switch range is a product line from the German company JUNG, which specializes in the development and manufacture of electrical installation and switch ranges. The LS 990 switch range is characterized by its timeless design and a wide range of switches, sockets, dimmers and other control elements. Based on the basic design of the classic LS 990, LS ZERO is its outlet-mounted counterpart, which is installed in such a way that smooth, even transitions are created between switches and surfaces.
Integration of the ekey xLine fingerprint scanner

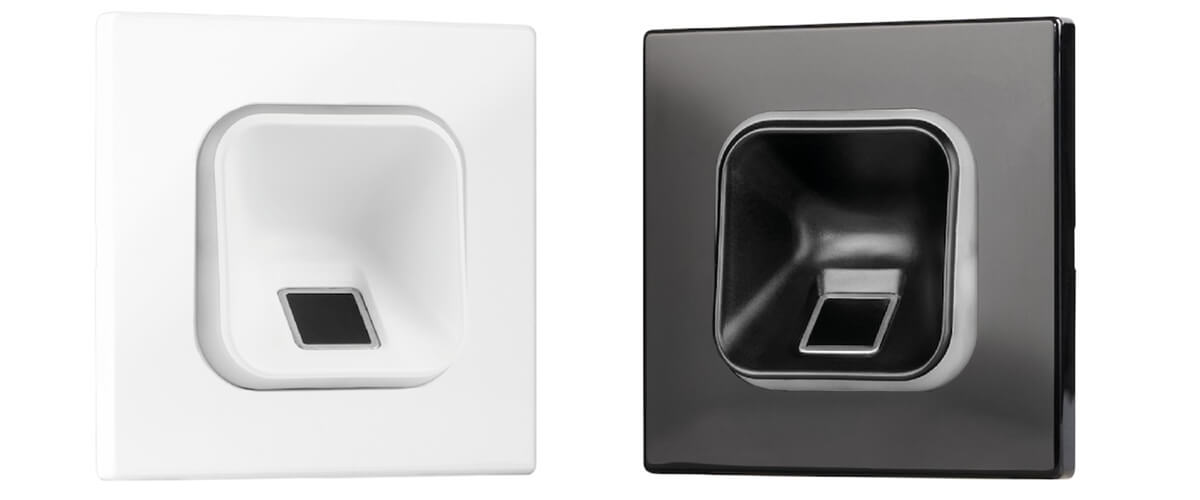

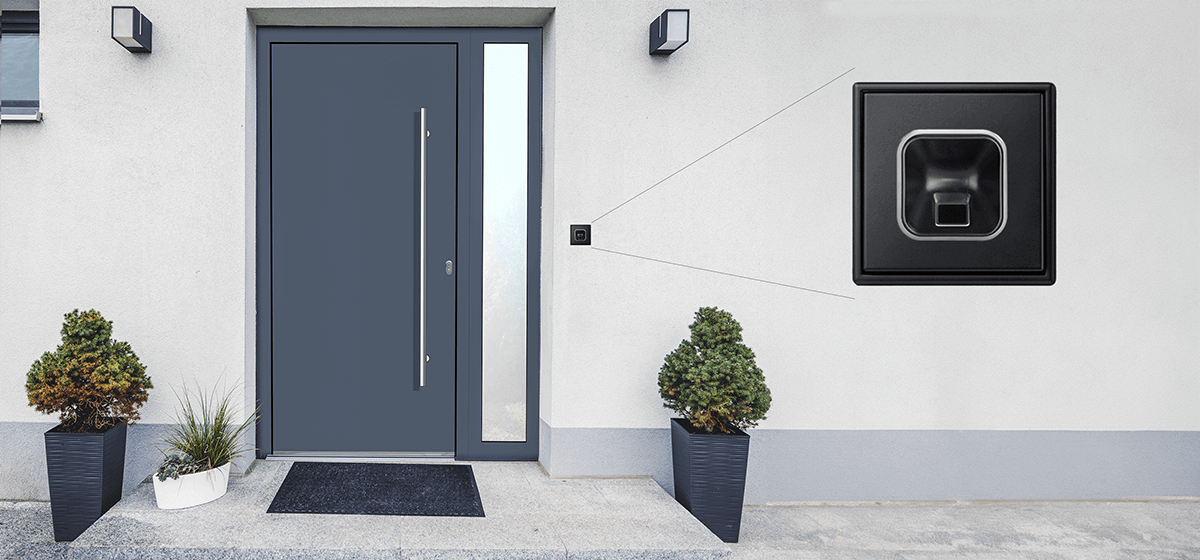

The ekey xLine fingerprint scanner can also be installed in the JUNG switch ranges. The ekey xLine frame adapter for JUNG LS 990 and LS ZERO in the colors white and black is used for this purpose.
Installation in a few simple steps
The ekey xLine fingerprint scanner is screwed into the switch back box. The JUNG LS 990 frame is then fitted and fixed to the fingerprint scanner using the ekey xLine frame adapter for JUNG LS 990. The locking mechanism enables quick attachment.
The following products are required:
- ekey products:
- ekey xLine fingerprint scanner set for flush-mounting installation without frame
- ekey xLine frame adapter for JUNG LS 990
- Not available from ekey:
- JUNG frame LS 990
- Corresponding switch back box
Frame adapter for 55 mm switch ranges

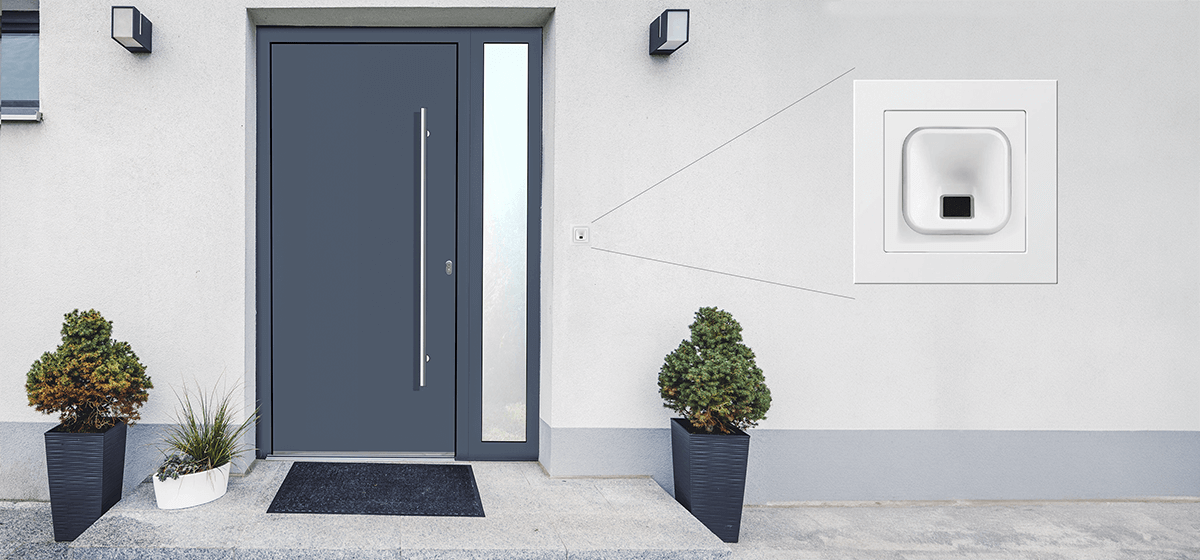

The ekey xLine frame adapter for 55 mm switch ranges is suitable for integrating the ekey xLine fingerprint scanner into many common switch ranges with dimensions of 55 x 55 mm.
Integration of the ekey xLine fingerprint scanner

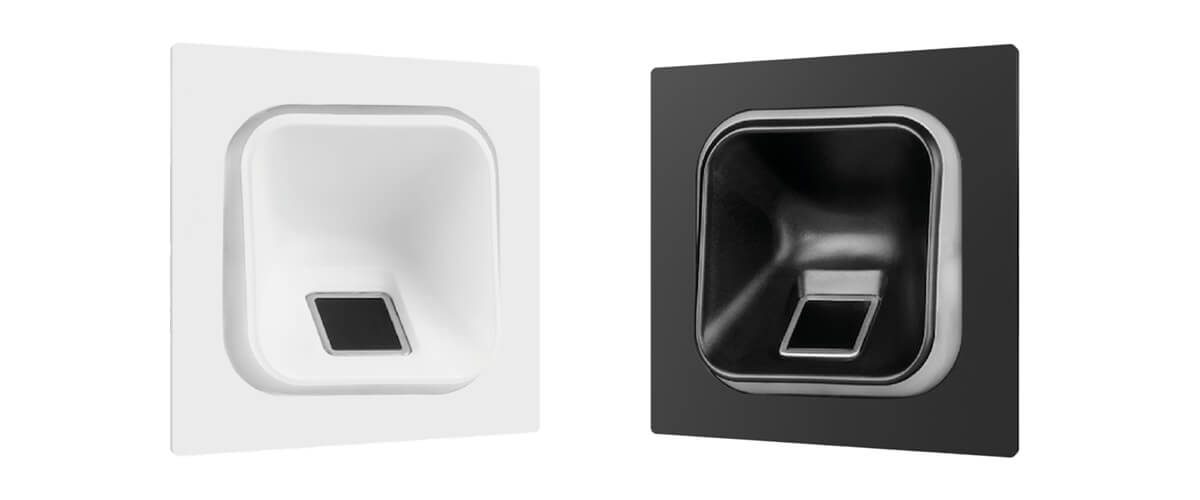

The ekey xLine fingerprint scanner can be installed in various switch ranges with standard dimensions of 55 x 55 mm. This allows the access solution to blend in with the selected switch range, resulting in a uniform appearance. The ekey xLine frame adapter for 55 mm switch ranges is available in white and black.
Installation in a few simple steps
The ekey xLine fingerprint scanner is screwed into the switch back box. The frame of the respective switch range is then fitted and fixed to the fingerprint scanner using the ekey xLine frame adapter for 55 mm switch ranges. The locking mechanism enables quick attachment.
The following products are required:
- ekey products:
- ekey xLine fingerprint scanner set for flush-mounting installation without frame
- ekey xLine frame adapter for 55 mm switch programs
- Not available from ekey (colored red in the illustration):
- Frame of the selected switch range
- Matching switch back box
Compatibility with switch ranges
The frame adapter is compatible with the following 55 mm switch ranges:
- Busch-Jaeger future® linear
- Busch-Jaeger Busch-Balance® SI
- Gira E2
- Gira System 55
- JUNG AS 500
- and much more
ekey xLine fingerprint scanner set for flush-mounting installation without ekey frame
The ekey xLine fingerprint scanner set for flush-mounting installation without frame includes the ekey xLine fingerprint scanner and the ekey DRM control unit with two relays. It was developed for seamless integration into standard switch ranges. Thanks to the combination of this fingerprint scanner set, the frame adapter for the desired switch range and the matching switch back box, you can create a uniform and consistent line in the design of your building.
In addition to the aesthetic component, the ekey xLine also offers smart functions that make your everyday life easier. For example, you can receive push notifications on your smartphone as soon as your loved ones come home and open the door using a fingerprint scanner – so you are always informed of their arrival. The access control system can also be extended at any time to include additional functions, users and devices, giving you maximum flexibility.
The convenient administration of authorizations is very easy via the ekey bionyx app. Here you can assign or revoke individual access authorizations – from anywhere or from the comfort of your sofa.
